Vulcan S100

Vulcan S100

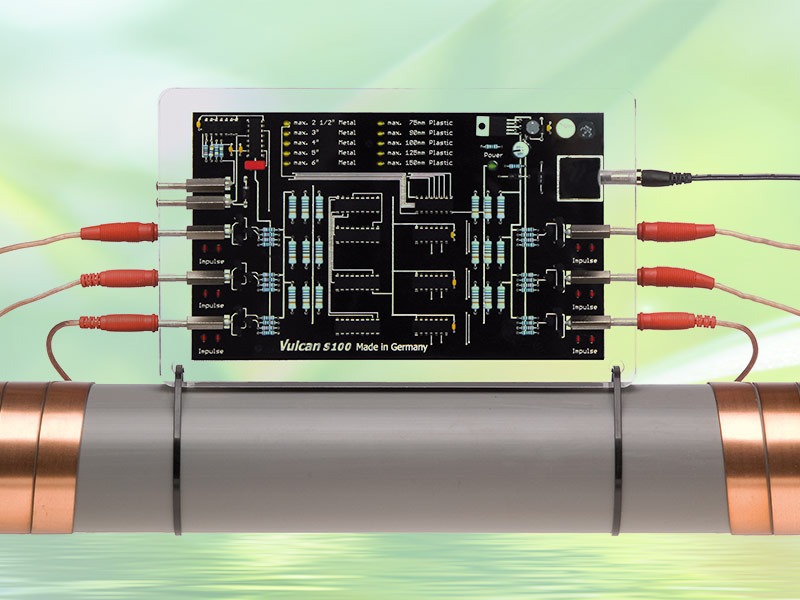

The Anti-Scale System Vulcan S100 treats pipe diameters up to 6″ and have been designed to perfectly meet the requirements of large commercial facilities and small industries. This programmable unit allows an individual adjustment according to the material and diameter of the pipes. Appliances and equipment which come in contact with hard water will have a longer life expectancy, when Vulcan is installed. Less time and effort is needed for cleaning, repairs and maintenance, etc.
Installation – without cutting the pipe.

» Vulcan benefits for commercial applications

» Save money with Vulcan



Vulcan Anti-Limescale System

The eco-friendly salt-free solution

Vulcan is an eco-friendly water treatment system that protects your piping system and appliances against limescale deposits and rust. The Vulcan-Impulse-Technology is based on the principle of physical water treatment. Special electronic impulses change the crystallization process of the liquid calcium. This way the hard limescale loses its adhesive power. The technology works exclusively with capacitive electric impulses:



eco-friendly VulcanNO SALT • NO CHEMICALS
NO MAINTENANCE • NO MAGNETISM



» References / Test Reports / Studies

blank

blank
blank
blank
blank

Weight 6 kg
Pipe diameter 2½" - 6” (64 - 150 mm)
Max. capacity 120 m³/h (530 gpm)
Voltage 36 V
Wattage 2.5 Watt
Impulse bands 6 x 4 m (6 x 13' 2″)
Band width 20 mm (0.8")
Dimensions 230/150/40 mm (9.1/5.9/1.6")
Frequency range 3 - 32 kHz
Required space ~ 1200 mm (~47″)
Programs 10
